Outdoor Mini Flood Lights
Product Details
FEATURES
ØHigh-power LED projection lighting – High-output performance for long-throw and accent lighting.
ØAdjustable luminaire design – Allows precise aiming and directional control.

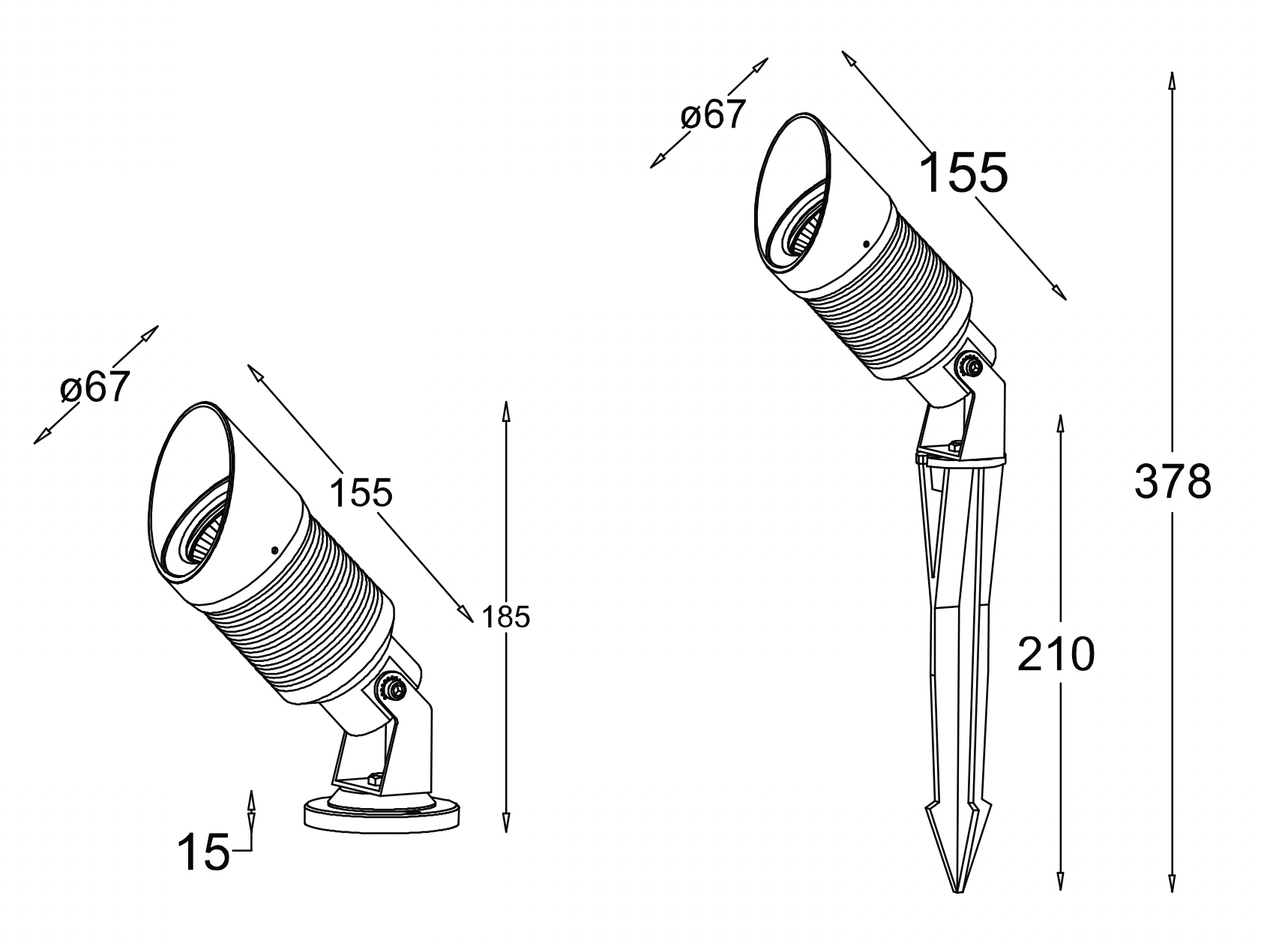

ØMultiple mounting options – Base, tree strap, ground, and spike mounting available.
ØCustom-made mounting solutions – Each mounting method can be tailored to specific project requirements.
ØAesthetic design – Combines performance with refined appearance.

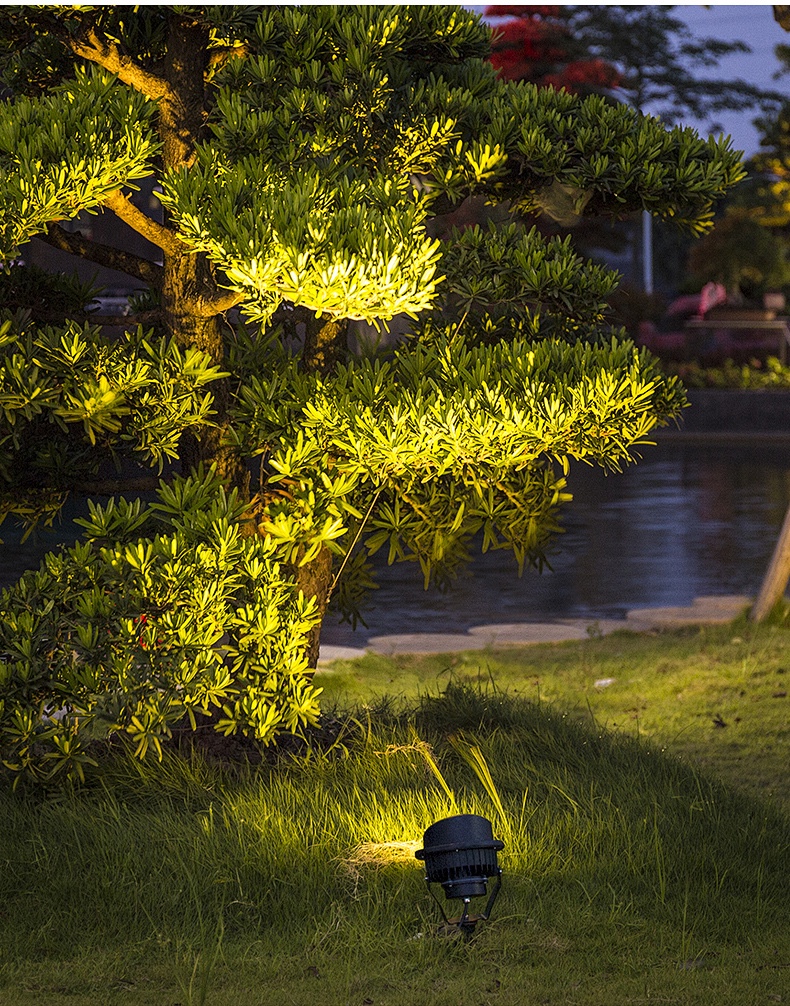

ØWide range of applications – Ideal for façades, landscapes, displays, and outdoor lighting.
Product Specs:
| Model No. | EM3102-00 | EM3102-50 | EM3102-00 | EM3103-50 |
| Power | 1~5W 1*1~5W | 1~5W 1*1~5W | RGB 3in1 3*3W | RGB 3in1 4*3W |
| CCT | 1700K~6500K R/G/B/O/Y/I/V | RGB | RGBW W=2700~5000K | |
| Dimming type | ON-OFF/DMX/0-10V Dali/PWM/Triac (External) | DMX512 Built-in DMX512 External single-point | ||
| Beam Angle | 15/25/45/120° | |||
| Input voltage | 5/12/24Vdc | AC 100/220/100-240V | 5/12/24Vdc | |
| IP Rating | 65 | |||
Things to know：
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
