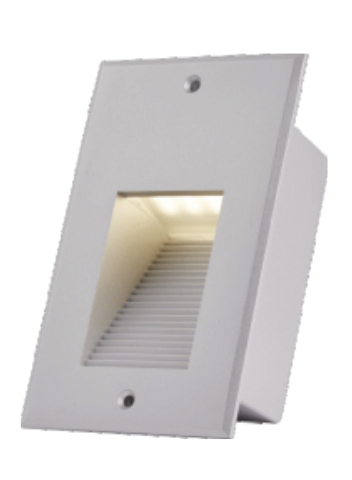

Outdoor Recessed Wall mounted light
Product Details
FEATURES
ØOutdoor recessed design – Compact, flush-mounted structure for a clean architectural finish.
ØMultiple form options – Various shapes available to complement different façade designs.
ØDurable aluminum housing – Die-cast aluminum construction ensures strength and efficient heat dissipation.

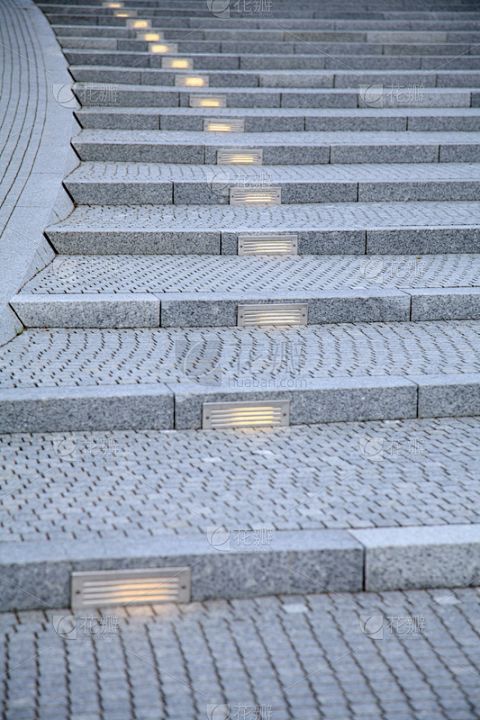

ØVersatile optical options – Multiple optics available for pathways, façades, and landscape lighting.
ØHigh-quality LED light source – Provides stable, comfortable illumination with refined visual comfort.
ØIP67 protection rating – Fully dust-tight and water-resistant, ideal for demanding outdoor and inground applications.
Product Specs:
| Model No. | EM1050-00 | EM1050-A0 |
| Power | 3～6W 12*0.25W～0.5W | |
| CCT | 1700K~6500K R/G/B/O/Y/I/V | |
| Dimming type | ON&OFF | DMX |
| Beam Angle | 45° | |
| Input voltage | 12/24/48Vdc | 100/240Vac |
| IP Rating | 67 | |
Things to know：
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
