Outdoor Skirting lamp
Product Details
Mounting
FEATURES
ØFixed light output – Non-adjustable design ensures stable and consistent illumination.
ØIP67 protection rating – Resistant to dust, rain, and temporary water immersion for outdoor applications.

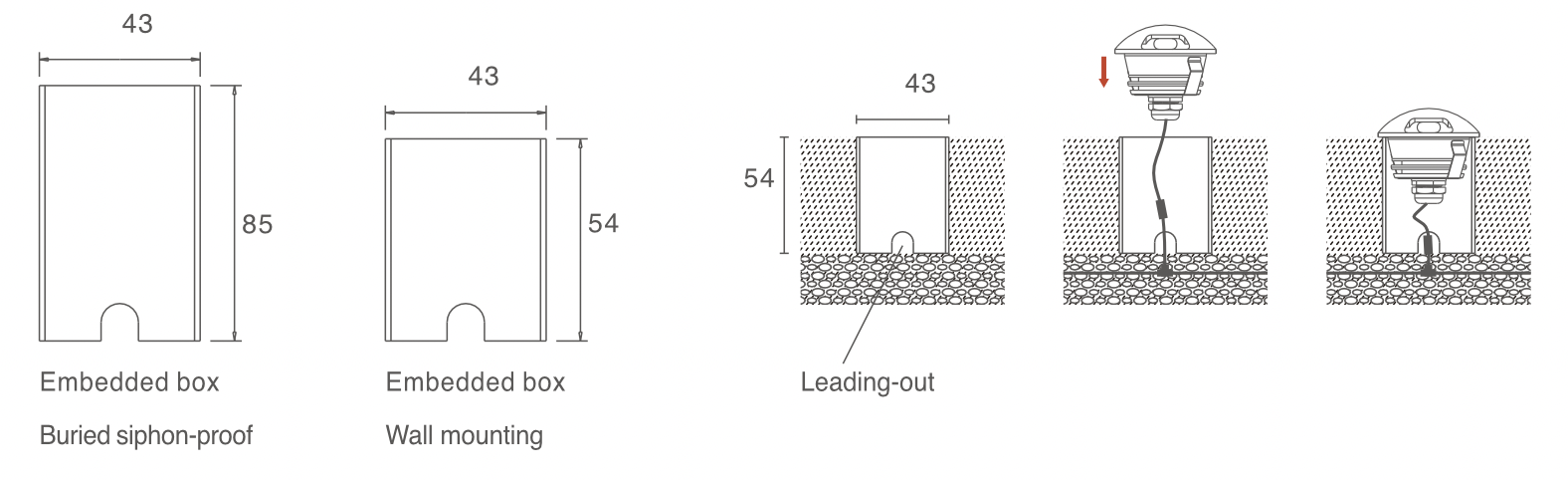

ØRecessed installation – Flush-mounted design integrates seamlessly into architectural surfaces.
ØCompact and durable construction – Designed for long-term reliable performance.
ØUniform and comfortable illumination – Provides glare-controlled light for safer night navigation.
ØWide application range – Ideal for walls, pathways, steps, garden walls, and building perimeters.
Product Specs:
| Model No. | EM-MC91003A | EM-MC91003B | EM-MC91003C |
| Power | 1.5W | 1.5W | 1.5W |
| Finishes | Brushed stainless steeI | ||
| CCT | 2700K/3000K/4000K/6000K | ||
| Rendering Index | Ra>92 | ||
| Lamp material | Aluminum | ||
| Input voltage | 24Vdc | ||
| IP Rating | 67 | ||
Things to know：
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
