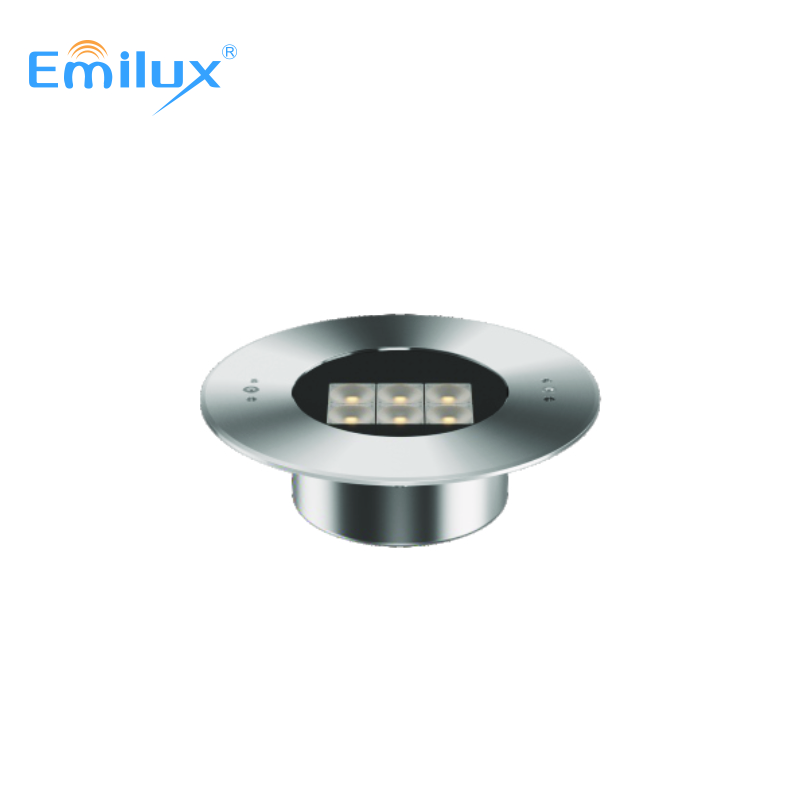

Outdoor Recessed Wall mounted light
Product Details
FEATURES
ØCompact recessed design – Low-profile construction designed to integrate seamlessly into pools and water features.
ØCLASS III safety rating – Ensures safe low-voltage operation in underwater environments.
ØSuitable for water jets up to 2 m – Ideal for pools and water jet applications.
Ø316 stainless steel housing and fasteners – Excellent corrosion resistance for long-term underwater use.
ØHigh-quality LED source – Available in 3000K / 4000K, CRI >80, with a 50,000-hour lifetime.
ØReliable sealing system – Silicone rubber gasket and clear toughened glass for dependable waterproofing.
ØSupplied with submersible cable – Includes PG11 cable gland and 2 m outdoor-rated submersible power cable.
ØRemote driver solution – Must be fully submerged during operation; remote driver included, IP gear box not included.
Product Specs:
| Model No. | EM4004-00 | EM4005-00 | EM4006-00 |
| Power | 15W 6*1~2.5W | RGB 3in1 6*3W | RGBW 4in1 6*4W |
| CCT | 1700K~6500K R/G/B/O/Y/I/V | RGB | RGBW W2700K~6500K |
| Dimming type | ON&OFF/DMX/Dali | DMX512 Built-in DMX512 External | |
| Beam Angle | 10/15/25/45/60/120° 10*35/10*45/10*60° | ||
| Input voltage | 12/24Vdc | ||
| IP Rating | 68 | ||
Things to know：
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
