Waterproof Spot LED Light
Overview Application Image Product Details Codes & Downloads

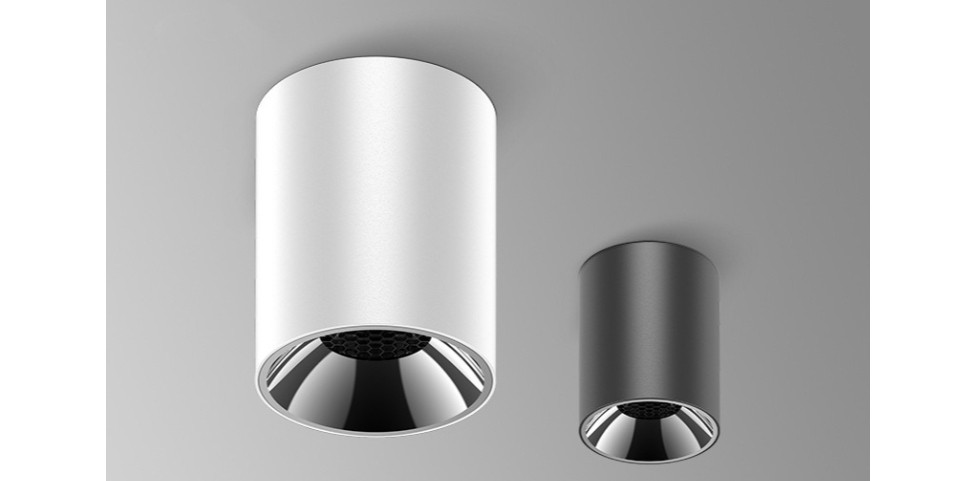

Neptune Series ceiling-mounted downlights

Neptune Series ceiling-mounted downlights 30W

Neptune Series ceiling-mounted downlights

Product Details

Neptune Series ceiling-mounted downlightsNeptune Series ceiling-mounted downlights

FEATURES

ØFixed system with steel springs

ØVersions with perimeter frame

ØBetter heat dissipation with die-casting Aluminum

material

ØReflector in metallic-finish thermoplastic material

with scratch protection for excellent lighting efficiency

 and visual comfort

ØGeneral lighting versions available with multiple

CCT

Ø Supported dimming systemTriac/ 0-10V/ DALI/

Blutooth/ Zigbee

ØWiring options: On-Off - DALI - with inverter for

emergency lighting

ØOutput luminous efficacy: >80lm/w

ØWarranty: 5 years

ØLifespan: 50000hrs

Product Specs:

Model No.EC1001EC1002EC1003
Power10-15W
20W30W
Power Factor0.5
0.50.9

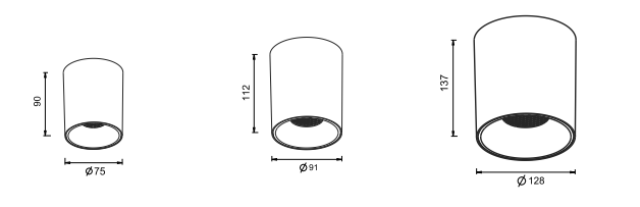

Dimension(mm)75*9091*112128*137
Beam Angle

15°/24°/36°/55°

Optical SolutionLens
DriverLIFUD/EAGLERISE
Input VoltageAC 220-240V
CRI90
Body ColorWhite
CCT3000/4000/5000k
IP Rating20/40
Things to know:

●  Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.

●  Installation must be done by professionals.

●  Please ensure the power has been cut off before installation in order to prevent the electric shock.

●  This product should be installed together with fuse and maintenance should be done by the professional.

●  The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.

●  Please consult the authorized department or retailers for returned advice.

Warranty:

This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
