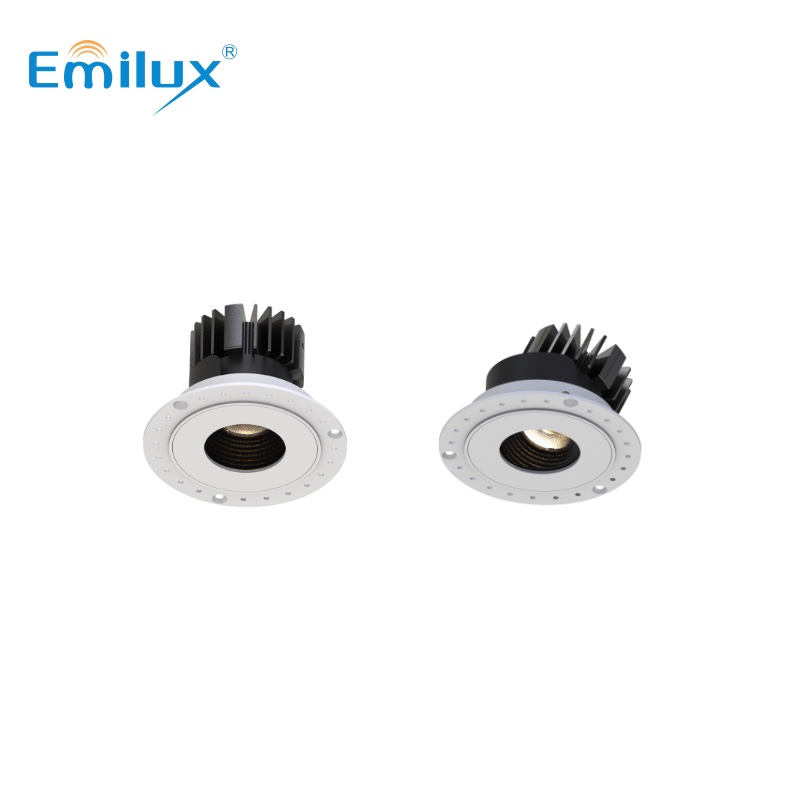

TRIOFORM  SERIES

Recessed spotlights adjustable

TRIOFORM  SERIES

Product Details

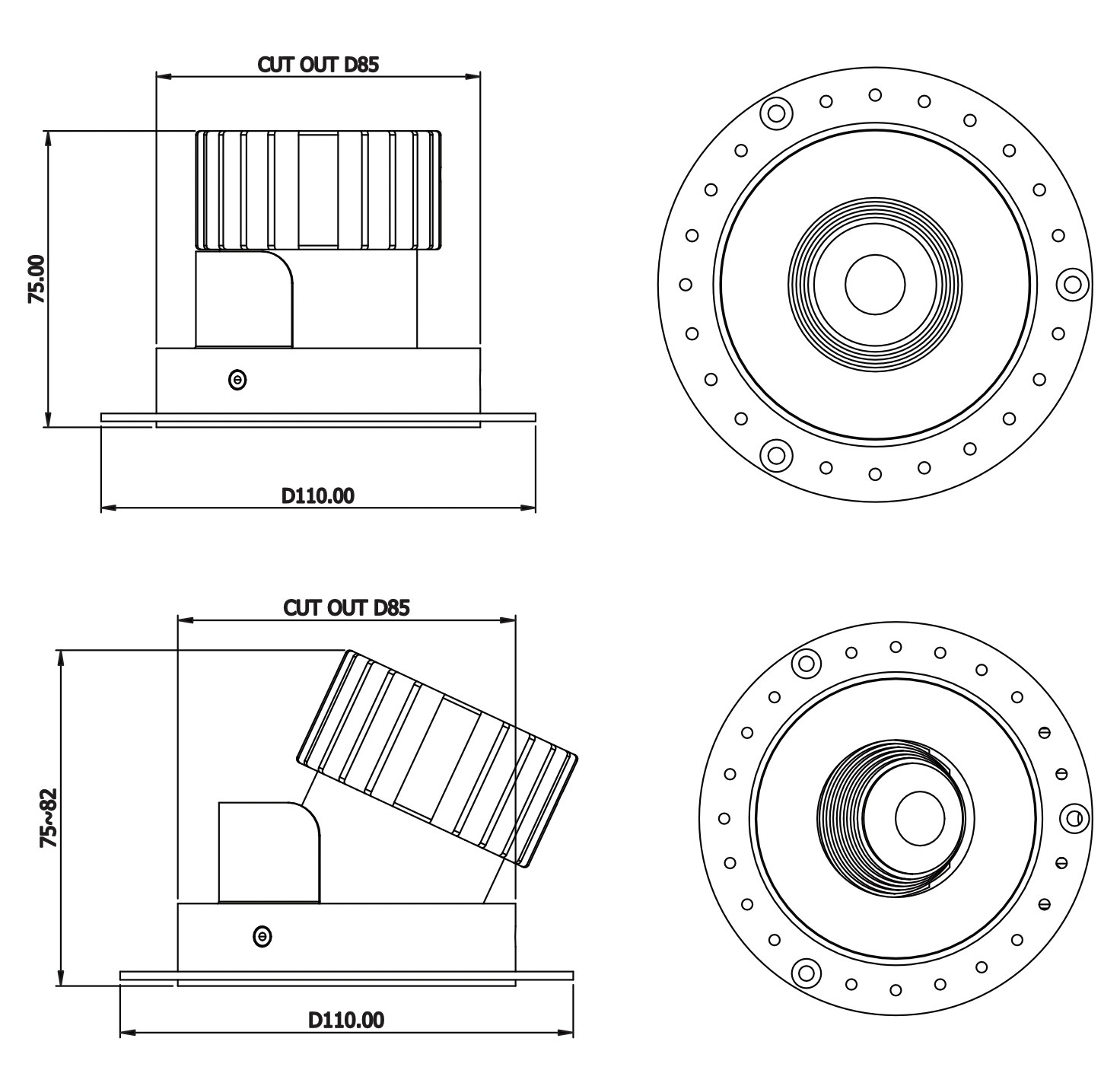

TRIOFORM SERIES截屏2025-12-19 14.42.04.png


FEATURES

ØRound – Smooth, flowing design that creates natural and harmonious lighting effects, ideal for residential and public spaces.

Ø25° Dynamic Adjustability – Precise aiming control for expressive accent lighting.

ØTimeless Black & White – Minimalist finishes that blend seamlessly into modern architecture.

ØMultiple Beam Options – 15°, 24°, and 36° beam angles, from focused highlights to wide illumination.

ØIP20 Indoor Precision – Engineered for refined lighting in residential, commercial, and display settings.

ØPremium Light Output – Smooth, clean beams that enhance detail with refined visual comfort.



Product Specs:

Body Color


Model No.ES2053ES2053-1
Power15W
SDCM<3
CRI ≥90
Efficacy

90lm/w

CCT2700/3000/4000/5000K
Input VoltageAC220-240V
SizeΦ110*75mm
Beam Angle15°/24°/36°


Things to know:

●  Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.

●  Installation must be done by professionals.

●  Please ensure the power has been cut off before installation in order to prevent the electric shock.

●  This product should be installed together with fuse and maintenance should be done by the professional.

●  The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.

●  Please consult the authorized department or retailers for returned advice.

Warranty:

This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
