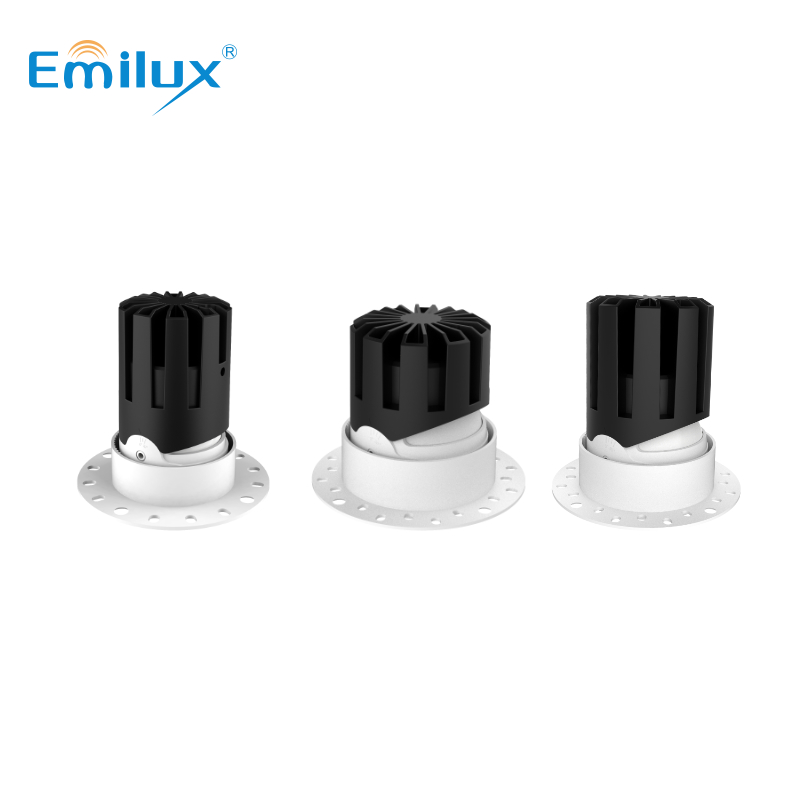

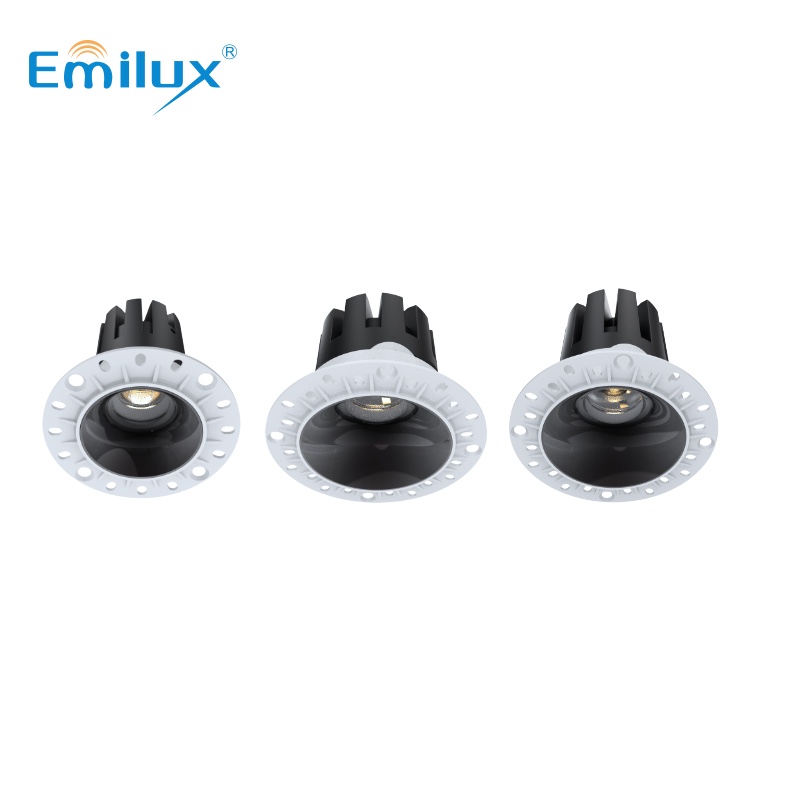

Recessed spotlights adjustable Trimless Type
Product Details
FEATURES
ØMinimal Frameless Design – Seamlessly integrates into the ceiling, creating a clean and refined visual appearance.
Ø0–20° Adjustable Beam – Offers flexible lighting from accent to wall-washing applications.
ØStable and Comfortable Illumination – Provides even and soft lighting for both functional and visual comfort.
ØCompact Luminaire – Compact design allows recessed installation, ideal for low ceilings and refined interiors.
ØIP20 Indoor Precision – Engineered for refined lighting in residential, commercial, and display settings.
ØVersatile Applications – Ideal for luxury homes, commercial displays, and refined interior spaces.
Product Specs:
| Model No. | ES9001-1 | ES9002-1 | ES9003-1 |
| Power | 5～9W | 10～12W | 15～18W |
| CRI | ≥90 | ||
| Efficacy | 80lm/w | ||
| CCT | 2700K/3000K/3500K/4000K/5000K | ||
| Input Voltage | AC220-240V | ||
| Cutout | Φ55mm | Φ75mm | |

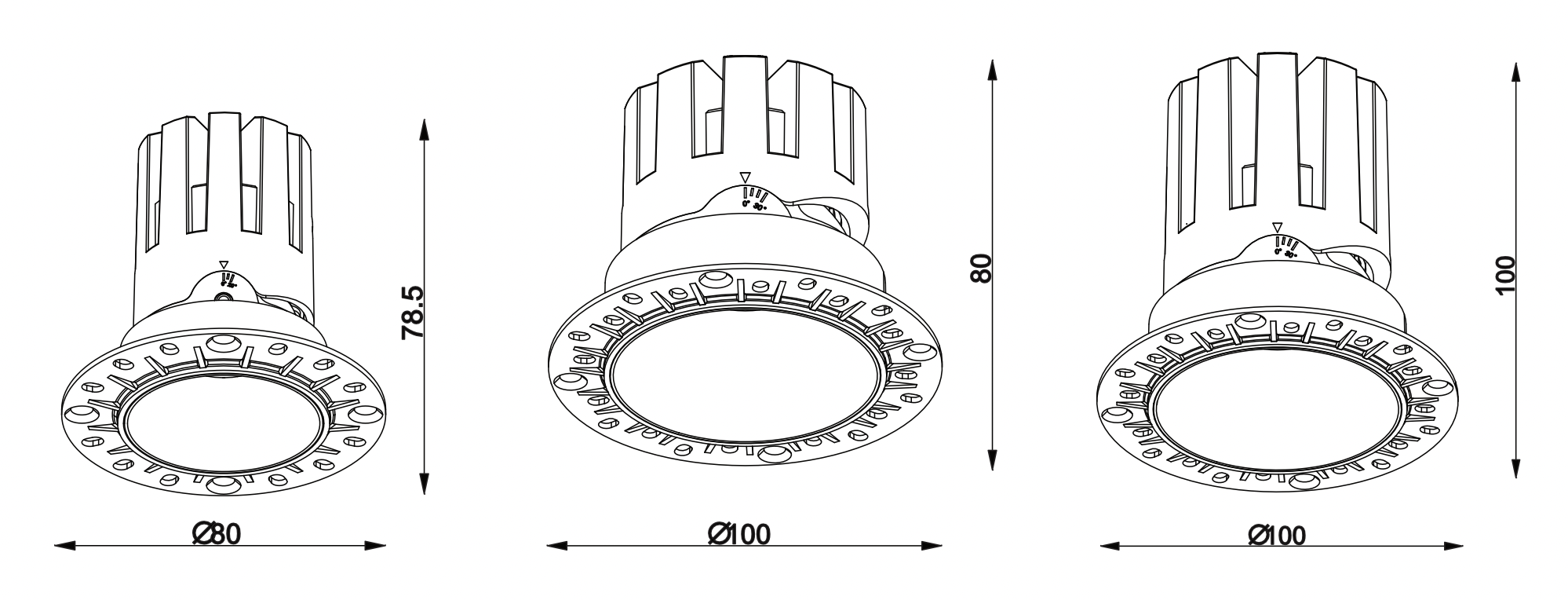

| Size | Φ80*78.5mm | Φ100*80mm | Φ100*100mm |
| Beam Angle | 15°/24°/36°/50° | 10°/15°/24°/36°/50° | |
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
