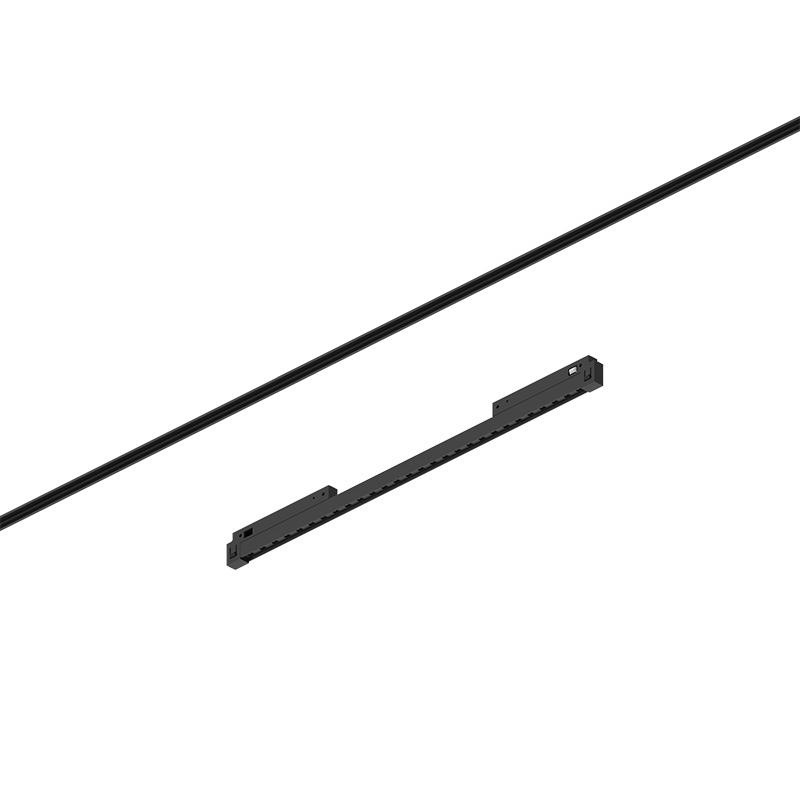

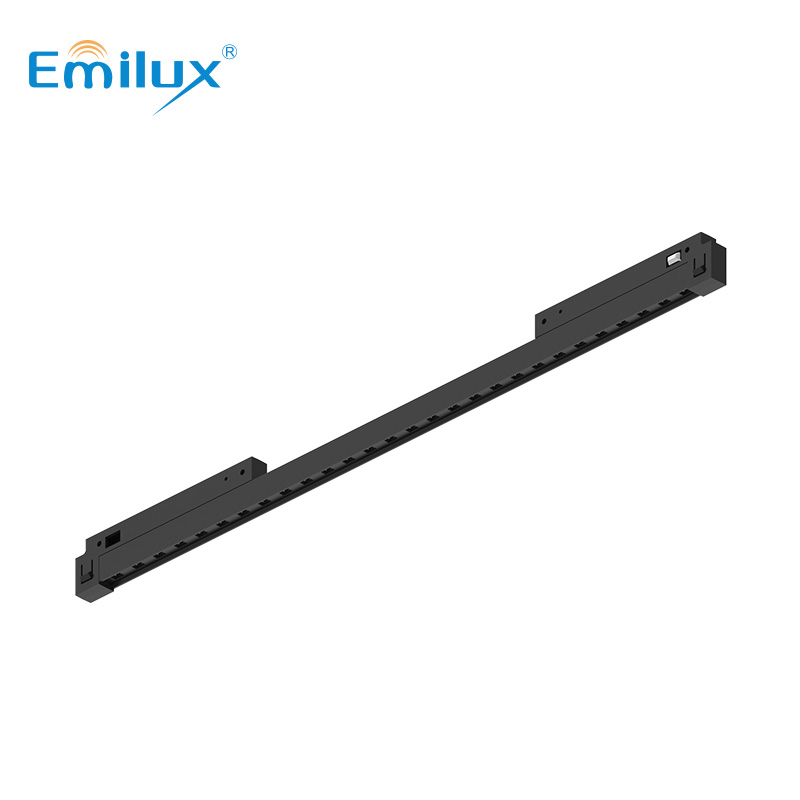

5mm wide ultra-narrow magnetic track system grille light
Product Details
FEATURES

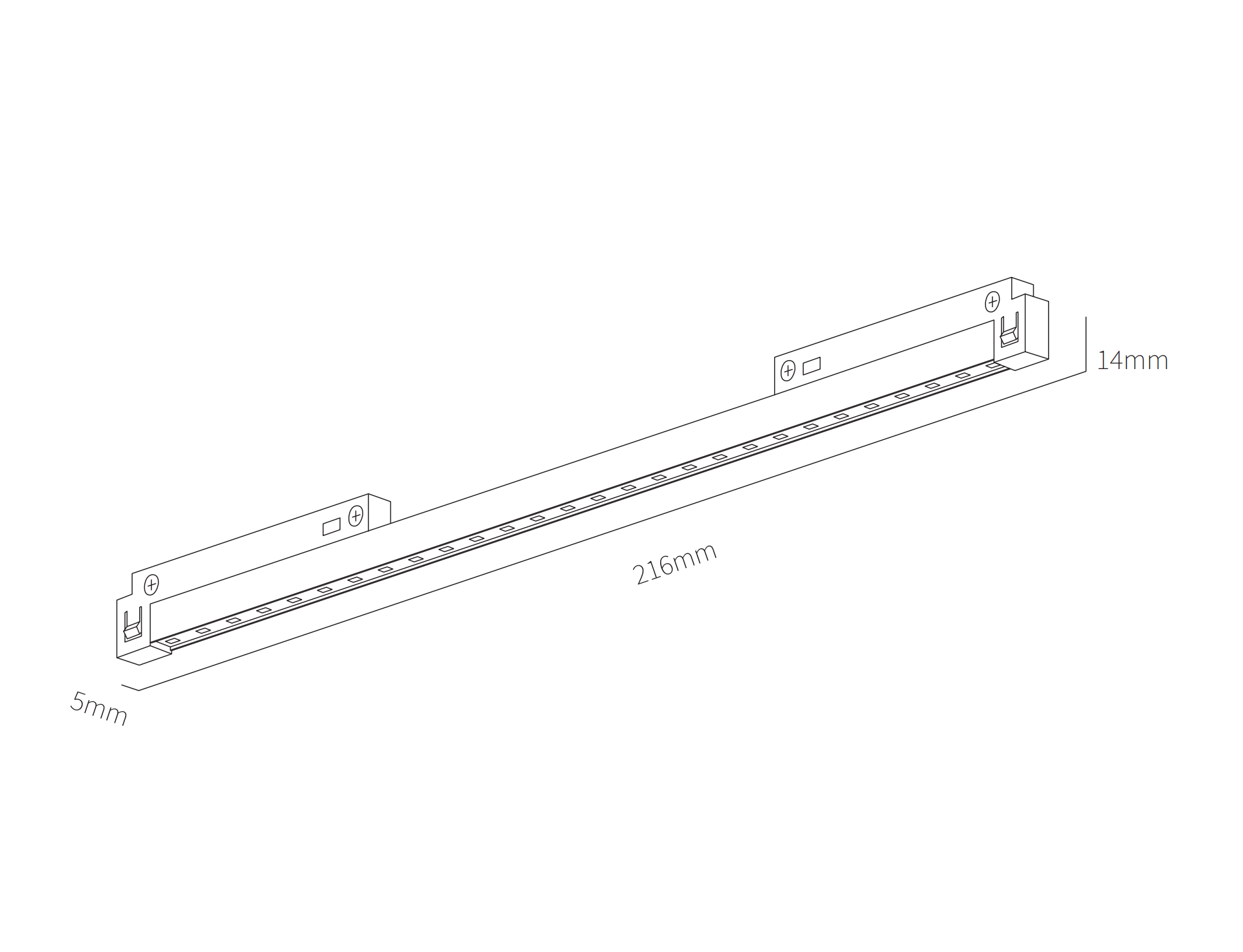

ØUltra-thin design – Only 5mm thick, featuring a sleek and minimalist appearance that blends
ØMultiple CCT options – Available in 3CCT, single, or dual CCT configurations to suit various lighting
ØAnti-glare optical design – Metallic reflector with diffuser lens delivers uniform and comfortable
ØSafe and durable – IP20-rated for reliable performance in office, residential, and commercial settings
ØEco-friendly and efficient – Low energy consumption reduces environmental impact and supports sustainable lighting
ØSmart dimming and CCT control – Supported dimming system: Triac/ 0-10V/ DALI/ Blutooth/Zigbee
ØHigh luminous efficacy – offering outstanding brightness and energy efficiency.
ØPremium aluminum housing – Made of high-quality aluminum, strong yet lightweight, offering excellent heat dissipation and refined texture.
Product Specs:
| Model No. | UN5-12T |
| Power | 6W |
| Diffuse | lens |
| Body Color | Black |
| Material | Aluminum product |
| Beam Angle | 60° |
| CCT | 3000/4000/6000k |
| Voltage | DC 24V |
| Ambient temperature | -20℃~40℃ |
| IP Rating | 20 |
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
