Waterproof Spot LED Light
Overview Application Image Product Details Codes & Downloads

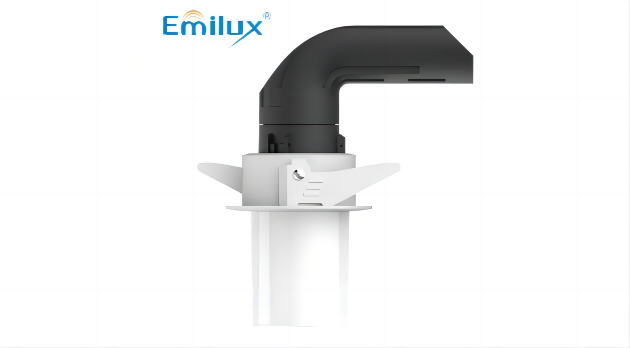

Clemmy Series Fixed mini spot light

Clemmy Series mini fixed spot light

Clemmy Series Fixed mini spot light

Clemmy Series Fixed mini spot light

Product Details

Features:

ØFixed system with steel springs

ØVersions with perimeter frame

ØBetter heat dissipation with die-casting Aluminum material

ØGeneral lighting versions available with white/black body

Ø Supported dimming systemTriac/ 0-10V/ DALI/ Blutooth/ Zigbee

ØWiring options: On-Off - DALI - with inverter for emergency lighting

ØOutput luminous efficacy: >80lm/w

ØWarranty: 5 years

ØLifespan: 50000hrs

Product Specs:
Model No.ES1031
Power9W
Power Factor0.5
Dimension(mm)70*H66
Cutout Size(mm)42
  Input VoltageAC 220-240V
Optical SolutionLens
SDCM<3
Beam angle10/15/24/36/50°
CRI>90
Body ColorWhite/Black
CCT3000/4000/5000K
IP Rating20
Things to know:

●  Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.

●  Installation must be done by professionals.

●  Please ensure the power has been cut off before installation in order to prevent the electric shock.

●  This product should be installed together with fuse and maintenance should be done by the professional.

●  The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.

●  Please consult the authorized department or retailers for returned advice.

Warranty:

This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
