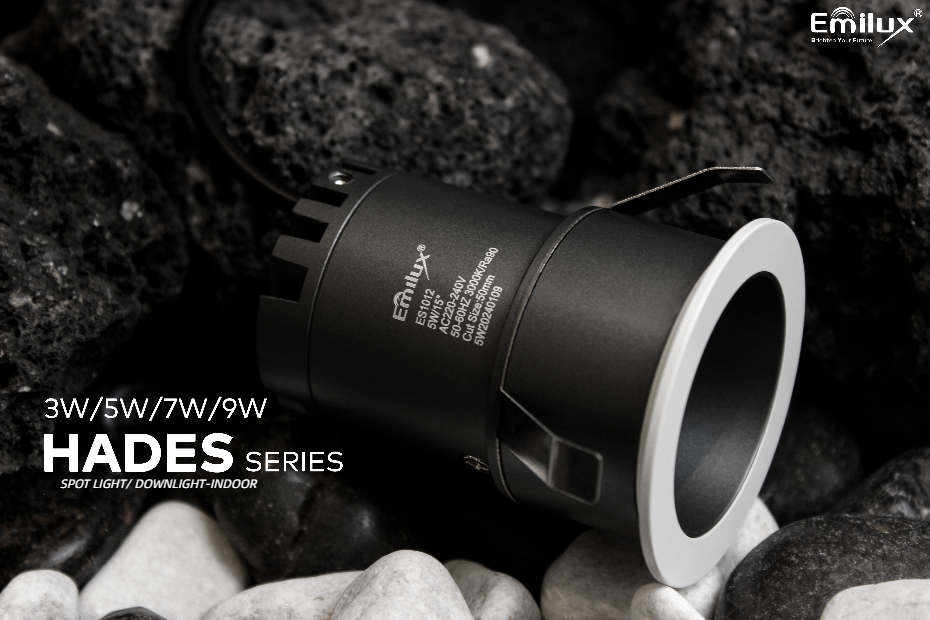

Hades Series mini spot light

Hades Series mini spot light

Hades Series mini spot light

Hades Series mini spot light

Product Details

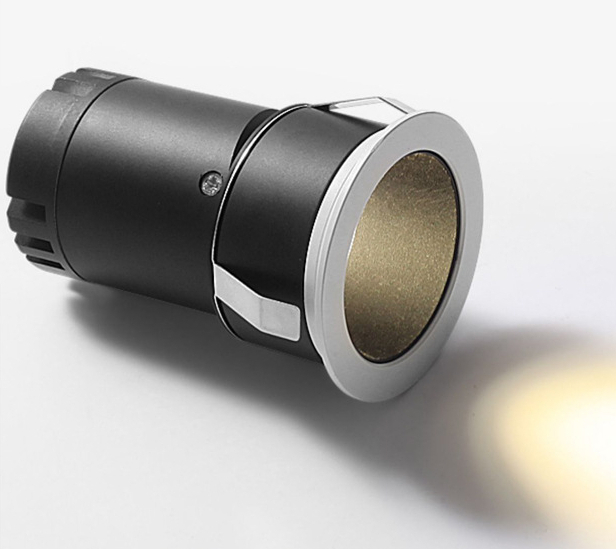

Hades Series mini spot light

FEATURES

ØFixed system with steel springs

ØVersions with perimeter frame

ØBetter heat dissipation with die-casting Aluminum

material

ØGeneral lighting versions available with fixed or

adjustable design

Ø Supported dimming systemTriac/ 0-10V/ DALI/

Blutooth/ Zigbee

ØWiring options: On-Off - DALI - with inverter for

emergency lighting

ØOutput luminous efficacy: >80lm/w

ØWarranty: 5 years

ØLifespan: 50000hrs

Product Specs:

Model No.ES1007ES1008ES1009ES1010ES1011ES1012ES1013
Power3W
3W7W9W3W
5/7W9W
CCT2700/3000/4000/5000K3000/4000/5000K
Dimension(mm)37*4045*5057*6569*8045*50
57*6569*80
Cutout Size(mm)30405060405060
  Input VoltageAC 220-240V
Optical SolutionLens
SDCM<3
Beam angle15/25/40°
CRI>90
Body ColorWhite/Black
Power Factor0.5
IP Rating44
Things to know:

●  Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.

●  Installation must be done by professionals.

●  Please ensure the power has been cut off before installation in order to prevent the electric shock.

●  This product should be installed together with fuse and maintenance should be done by the professional.

●  The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.

●  Please consult the authorized department or retailers for returned advice.

Warranty:

This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
