Recessed spotlights
Product Details
FEATURES
ØIdeal for architectural projects – Designed for commercial, residential, and public building lighting, meeting professional requirements.
ØCompatible with various trims – Flexibly supports multiple trim options for easy installation and design customization.
ØVarious designs for different needs – Offers diverse forms and features to suit various spaces and lighting applications.
ØSafe and durable – IP44-rated for reliable performance in office, residential, and commercial settings
ØAvailable in trimless versions – Minimalist recessed design with no visible frame for clean, seamless installation.
Product Specs:
| Model No. | ES7016 | ES7017 |
| Power | 5~9W | 12~15W |
| Diffuse | Lens | |
| Body Color | Black/White | |
| Efficacy | 80lm/w | |
| Beam Angle | 15°/24°/36°/50° | |
| CCT | 2700/3000/4000/5000K | |
| Input Voltage | AC220-240V | |
| CRI | ≥90 | |

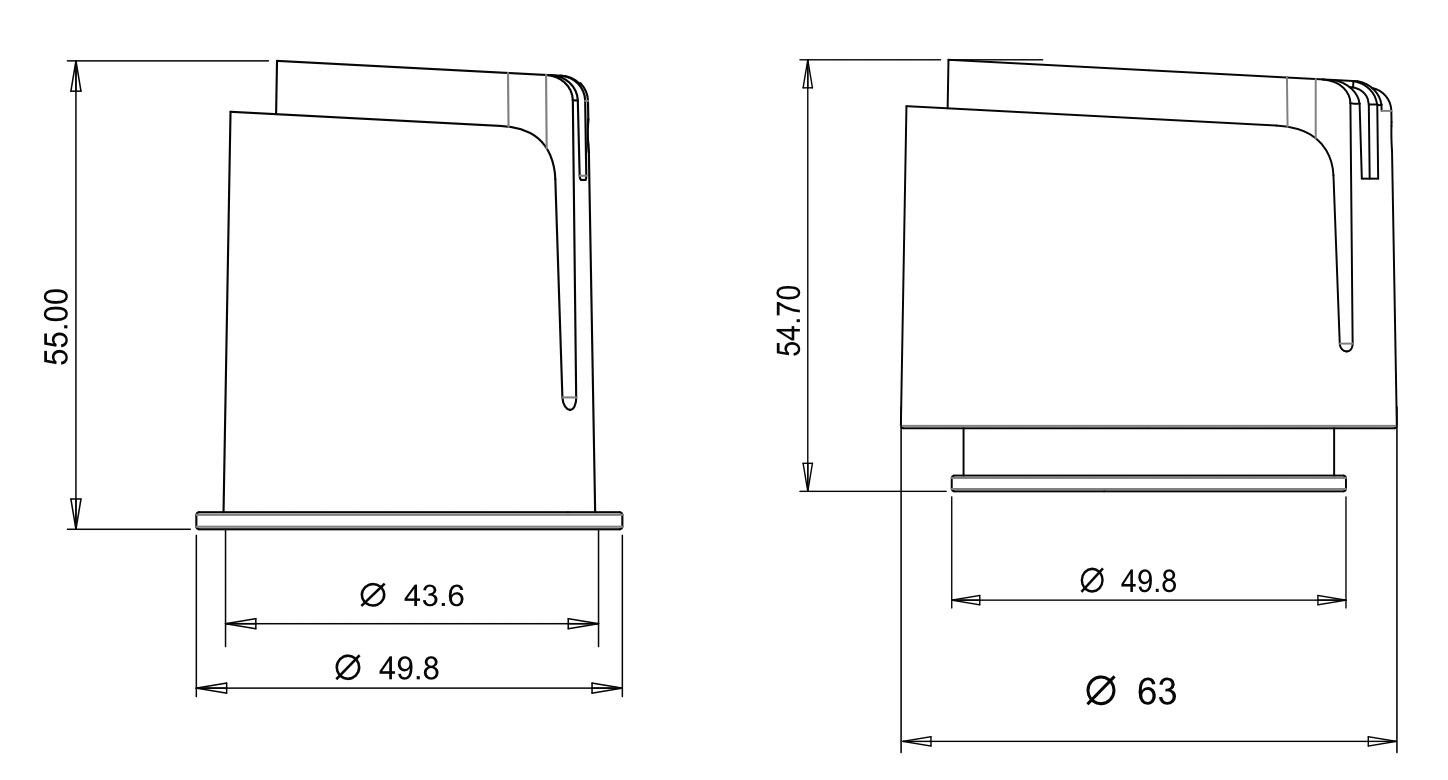

| Size | Φ49.8*55mm | Φ49.8*54.7mm |
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
