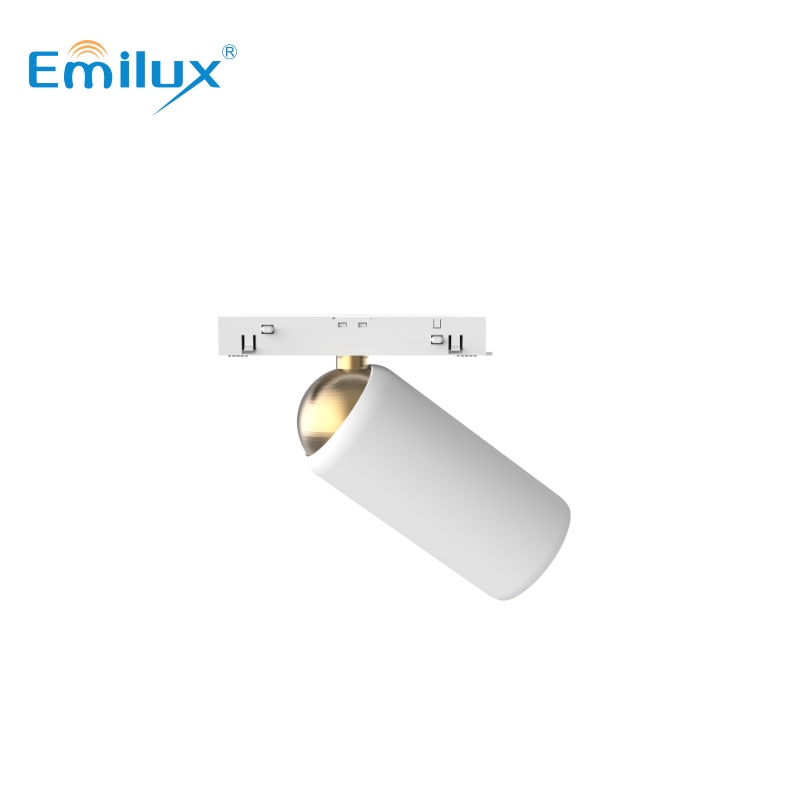

360° spherical track spotlight
Product Details
FEATURES
Ø360° spherical ball-joint adjustment – Precision copper ball-joint enables 360° horizontal rotation and 55° vertical tilt for accurate aiming.
Ø48V low-voltage track system – Safe and efficient 48V track power supply, suitable for wall and ceiling installations.
ØMultiple beam angle options – Available in four beam angles for both accent and general lighting applications.
ØOptional reflector-based optics – Optional reflector optics deliver either focused or softer illumination.
ØConcealed internal wiring – Internal wiring housed in a flexible metal sleeve ensures a clean, cable-free appearance.
ØWide dimming compatibility – Compatible with 0–10V, DALI, TRIAC, and wireless dimming systems.
ØPremium metal housing – Durable metal construction provides stability, efficient heat dissipation, and a refined finish.
Product Specs:
| Model No. | ET1002 |
| Power | 14W |
| CCT | 2700～6500K |
| Input Voltage | AC220-240V |
| Efficacy | 80Lm/w |
| CRI | 90+ |
| UGR | >19 |

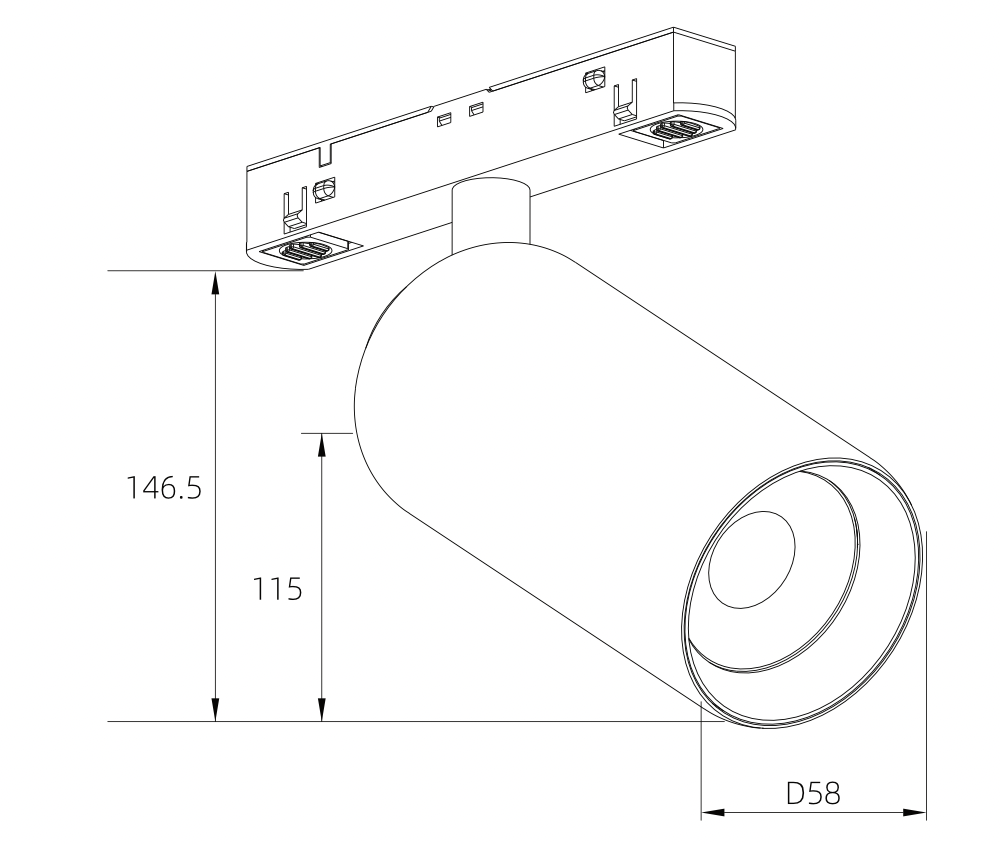

| Size | Φ58*115mm |
| Beam Angle | 15°/24°/36°/50° |
● Due to the different Voltage of lighting fixture, please select the appropriate LED driver based upon the technical specification.
● Installation must be done by professionals.
● Please ensure the power has been cut off before installation in order to prevent the electric shock.
● This product should be installed together with fuse and maintenance should be done by the professional.
● The lamp waste could not be treated as the normal rubbish and should be returned and make use of the normal parts.
● Please consult the authorized department or retailers for returned advice.
Warranty:
This product has a warranty period of 5 Years. Warranties may be available on certain products as indicated in the product description. Warranties are valid from the date of purchase.The warranty is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label or installation in an improper working environment. Should this product fail during the warranty period it will be replaced free of charge subject to the correct installation of the original product and subsequent return of the faulty unit. Emilux does not accept responsibility for any installation costs associated with the replacement of this product and Emilux reserves the right to alter specifications without prior notice.
